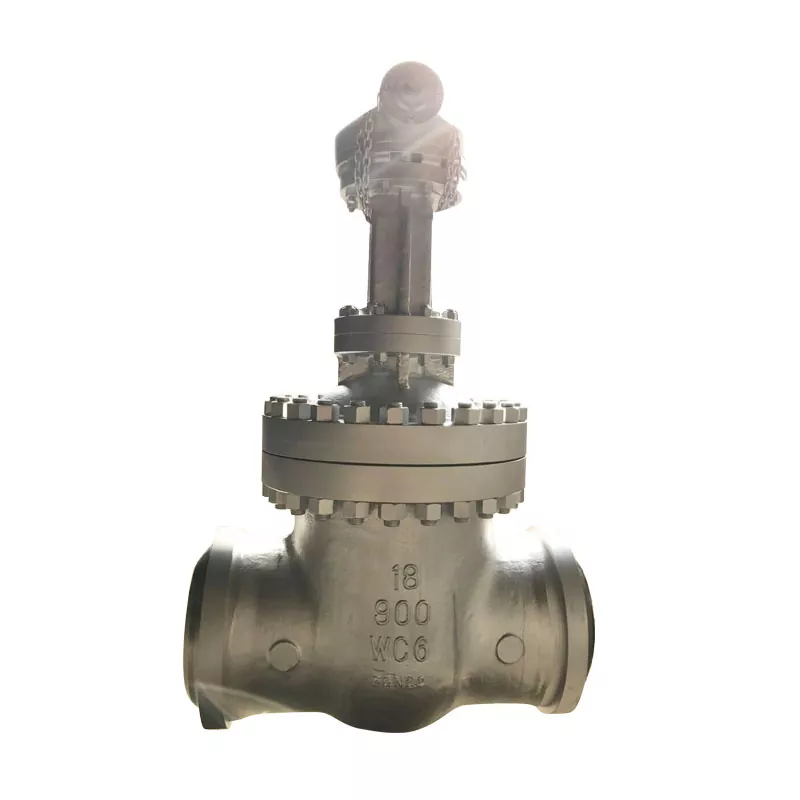

Hanno Valve high quality Welded End Gate Valves are specifically designed for high-performance applications in various industries, providing robust and reliable sealing in critical piping systems. Their welded ends eliminate the risk of leakage at joints, making them an ideal choice for high-pressure and high-temperature environments.
The main features and advantages of Hanno Valve high quality Welded End Gate Valves are low fluid resistance; Welded End Gate Valves design make the fluid through the valve resistance is small, reducing energy consumption. The sealing surface of the Welded End Gate Valves is less washed and eroded by the medium, and has good sealing performance, which can maintain stable sealing effect under high temperature and high pressure environment.
These features collectively enhance the performance and longevity of advanced gate valves, making them suitable for critical applications across various industries. For more information, you can refer to the specific product documentation from manufacturers or industry standards.
NO. | PART NAME | MATERIAL |
---|---|---|
1 | Body | ASTM A217 WC9 |
2 | SEAT | A182 F22+STL |
3 | WEDGE | ASTM A217 WC9+STL |
4 | Stem | A182 F60 |
5 | Bonnet | A182 F22 |
6 | Sealing ring | A182 F304 |
7 | Canteen ring | ASTM A276 T420 |
8 | Bolt | ASTM A193 B16 |
9 | Plant | A182 F22 |
10 | YDKE | ASTM A217 WC9 |
11 | Nut | ASTM A194 4 |
12 | Nut | ASTM A194 4 |
13 | Ping | ASTM A1035 |
14 | Packing | GRAPHITE |
15 | YOKE | ASTM A217 WC9 |
16 | Gland | ASTM A276 410 |
17 | GLANDFLANGE | ASTM A217 WC9 |
18 | Eyebolt | ASTM A193 B16 |
19 | Nut | ASTM A194 4 |
20 | Gear box | ASTM A216 VCB |
21 | PIPE | ASTM A335 P22 |
22 | GLOBE VALVE2500LB 1' | ASTM A335 P22 |
