Swing Type Check Valves
Hanno Valve advanced Swing Type Check Valves have the advantages of simple and compact structure, beautiful appearance and easy maintenance. Swing Type Check Valves are suitable for preventing media counterflow, especially for clean media, but not suitable for media containing solid particles and large viscosity.Swing Type Check Valves can be installed horizontally or vertically, easy installation, smooth flow path, small fluid resistance
Send Inquiry
Product Description
Product description of Hanno Valve durable Swing Type Check Valves: The function of swing flange check valve is to prevent the backflow of medium in the pipeline. Check valves belong to the category of automatic valves, and their opening and closing components are automatically opened or closed by the force of the flowing medium. Check valves are only used for one-way flow of media
Product Description of Swing Type Check Valves:
The function of a swing type flange check valve is to prevent the backflow of medium in the pipeline. Check valves belong to the category of automatic valves, and their opening and closing components are automatically opened or closed by the force of the flowing medium. Check valves are only used on pipelines with unidirectional flow of media to prevent backflow and prevent accidents. The swing type flange check valve is suitable for media such as water, oil, steam, acidic media, etc. The product is widely used in pipelines of various working conditions in the petroleum, chemical, pharmaceutical, and power industries.
Product features of Swing Type Check Valves:
Swing type flange check valve is an automatic valve that automatically opens and closes by the force generated by the flow of the medium itself in the pipeline. Check valves are used in pipeline systems to prevent reverse flow of media, reverse rotation of pumps and their drive motors, and release of media from containers. Check valves can also be used in pipelines to supply auxiliary systems where the pressure may rise above the main system pressure The function of a swing type flange check valve is to prevent the backflow of medium in the pipeline. Check valves belong to the category of automatic valves, and their opening and closing components are automatically opened or closed by the force of the flowing medium. Check valves are only used on pipelines with unidirectional flow of media to prevent backflow and prevent accidents. Check valves are suitable for media such as water, oil, steam, acidic media, etc.
Materials
| NO. | Part name | Materials |
|---|---|---|
| 1 | Body | LCC |
| 2 | Seat surface | SS316 |
| 3 | Disc | LCC+SS316 |
| 4 | Disc Nut | A194-8 |
| 5 | Hinge | LCC |
| 6 | Arm Pin | SS316 |
| 7 | Nut | A194-4 |
| 8 | Bolt | A320-L7 |
| 9 | Bonnet | LCC |
| 10 | Gasket | SS316+Graphite |
| 11 | Support | LCC |
| 12 | Bolt | A194-B8 |

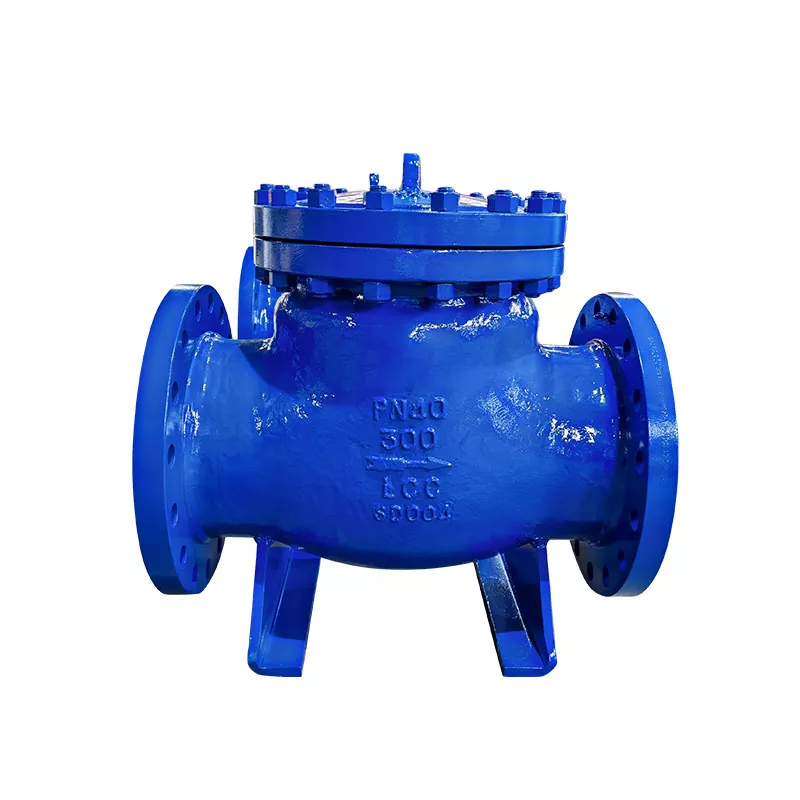

Product Photos
