anno Valve is a professional China API Gate Valves Factory. We have been specialized in API Gate Valves more than 25 years. Hanno Valve’s API Gate Valves mainly from 150lb to 2500lb, 2’’ to 56’’, with WCB, WCC, LCB, LCC, WC6, WC9, C5, CF8, CF3, CF8M, 4A, 5A, 6A, 904L, etc.
Send Inquiry
Product Description

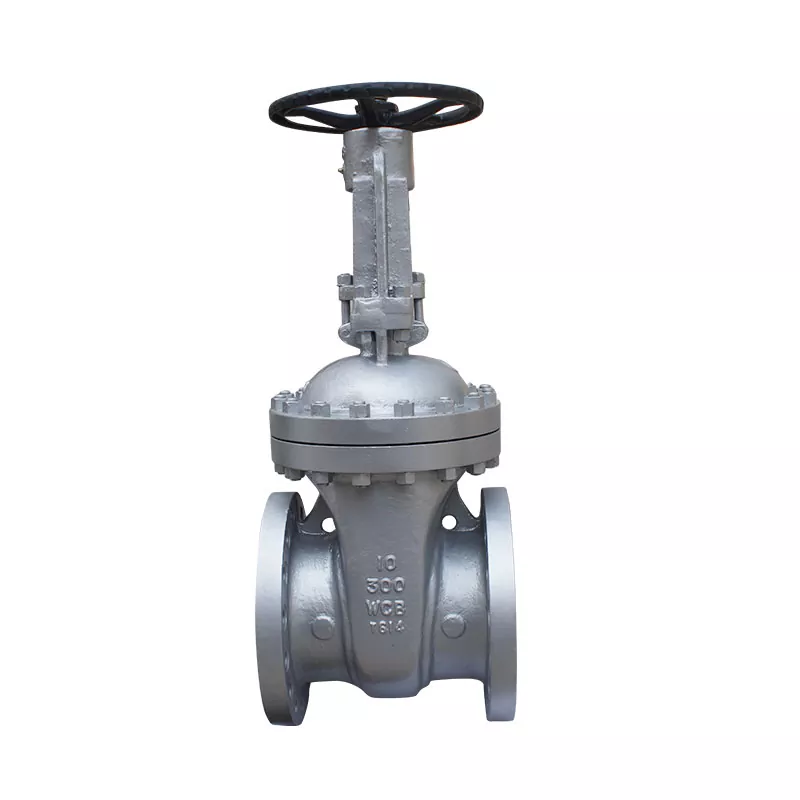

API Gate Valves of Hanno Valve is manufacture according to API 600, mainly manufacture with handwheel, with gearbox, or for electric actuator.
API gate valve is suitable for cutting off or connecting pipeline media in various working conditions such as petroleum, chemical, and thermal power plants with ANSI Class 150-2500 and working temperature<600 ℃. The applicable media are water, oil, steam, etc. The 1500LB and 2500LB chambers adopt a pressure self sealing structure. The sealing performance increases with the increase of internal pressure, and the reliability is high.
API Gate Valve Information
The difference and selection between high platform ball valves and ordinary ball valves
Structural diagram of Z41H cast steel flange gate valve Working principle of Z41H cast steel flange gate valve
Method for Model Designation of Pneumatic Gate Valves
Method for representing the working principle and model of electric gate valves
Types and classifications of gate valves
Characteristics, Applications, and Installation Instructions of Bellows Gate Valve Products
The working principle and difference between hidden stem gate valve and rising stem gate valve
Method for Representing Gate Valve Models | Meaning of Gate Valve Models
Product Parameters
| N.B | d | L | 0 | V | R | t | f | D0 | H | N-øh |
|---|---|---|---|---|---|---|---|---|---|---|
| 2' | 50.8 | 216 | 165 | 127.0 | 92.1 | 20.7 | 2 | 200 | 430 | 8-19 |
| 3' | 76.2 | 282 | 210 | 168.3 | 127.0 | 27.0 | 2 | 250 | 475 | 8-22 |
| 4' | 101.6 | 305 | 255 | 200.0 | 157.2 | 30.2 | 2 | 280 | 579 | 8-22 |
| 6' | 152.4 | 403 | 320 | 269.9 | 215.9 | 35.0 | 2 | 355 | 782 | 12-22 |
| 8' | 203.2 | 419 | 380 | 330.2 | 269.9 | 39.7 | 2 | 450 | 1026 | 12-26 |
| 10° | 254.0 | 457 | 445 | 387.4 | 323.8 | 46.1 | 2 | 450 | 1190 | 16-29 |
Materials
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A216-WCB |
| 2 | BONNET | ASTM A216-VCB |
| 3 | BONNET BOLT | ASTM A193-B7 |
| 4 | BONNET NUT | ASTM A194-2H |
| 5 | GLAND EYE BOLT | ASTM A193-B7 |
| 6 | GLAND NUT | ASTM A194-2H |
| 7 | VASHER | STEEL |
| 8 | PIN | STEEL |
| 9 | HANDWHEEL | DUCTILE IRON |
| 10 | HANDWHEEL NUT | STEEL |
| 11 | STEM NUT | BRASS |
| 12 | RETAINING NUT | STEEL |
| 13 | GREASE NIPPLE | COPPER |
| 14 | GLAND FLANGE | ASTM A216-VCB |
| 15 | GLAND | ASTM A182-F6a |
| 16 | PACKING | GRAPHITE |
| 17 | BACKSEAT BUSHING | ASTM A182-F6a |
| 18 | STEM | ASTM A182-F6a |
| 19 | GASKET | STEEL+GRAPHITE |
| 20 | DISC | ASTM A216-WCB+13CR |
| 21 | SEAT | ASTM A105+STL |
